Hydraulic Oil Press
High-pressure hydraulic extraction for controlled oil production
Technical quote requests receive a response within one business day.
Overview
About this machine

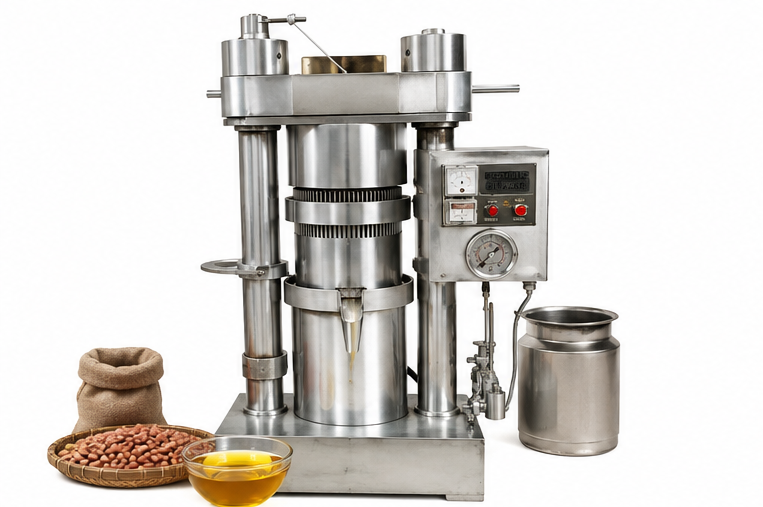

The OGIV 6YZ hydraulic series presses cocoa, peanuts, soybeans, rapeseed, linseed, coconut, sunflower, flax, tea seeds and palm seeds, and is available in eight capacities.
What it does
Function
Compresses prepared oilseed material hydraulically so that oil is expressed while the remaining solids form an oil cake. Batch operation gives the operator precise control over every cycle.
How it works
Process steps
- Prepare seed
- Load chamber
- Apply hydraulic pressure
- Collect oil
- Remove cake
- Filter / refine
Applications
Suitable materials & uses
- Sesame
- Peanut / groundnut
- Soybean
- Rapeseed
- Sunflower
- Linseed
- Coconut
- Cocoa
- Tea seeds
- Palm seeds
Key benefits
Why this machine
Technical specifications
Specification table
| Specification | Details |
|---|---|
| Models | 6YY-150 / 180 / 230 / 260 / 320 / 360 / 415 / 460 |
| Capacity | 12 / 20 / 40 / 60 / 70 / 90 / 120 / 180 kg/h |
| Working pressure | 55–60 MPa |
| Heating power | 600 / 720 / 850 / 950 / 1100 / 1250 / 1500 / 2000 W |
| Heating temperature | 50–70 °C |
| Tank capacity | 2 / 4 / 8 / 12 / 17.5 / 22.5 / 30 / 45 kg |
| Oil-cake diameter | 155 / 192 / 242 / 268 / 323 / 370 / 415 / 460 mm |
| Motor | 0.75 / 1.5 / 1.5 / 1.5 / 2.2 / 2.2 / 2.2 / 2.2 kW |
| Weight | 240 / 550 / 950 / 1200 / 1700 / 2000 / 2200 / 3000 kg |
| Packing size | 700×800×780 through 1500×1500×2150 mm |
| Voltage | 220/380 V is published by some external listings; confirm exact unit |
Eight capacities share one proven hydraulic platform; the exact model for your output is confirmed in your quotation.
Production-line position
Where it fits
FAQ
Common questions
How do I choose the right model?
By your required kg/h and batch size. Our engineers will match a model to your raw material and target output.
Is it continuous?
No — the hydraulic process is batch-based, which gives you control over each pressing cycle.
Can it press several seeds?
Yes — it handles a wide range including sesame, groundnut, soybean, rapeseed, sunflower and coconut.
Request a quote
Tell us your raw material, required throughput, available power supply, installation location and desired automation level — we will size the machine for you.
Every OGIV supply includes installation, commissioning, operator training and after-sales support. Full production sequence: Roast → Press → Refine → Filter → Cool → Package.
